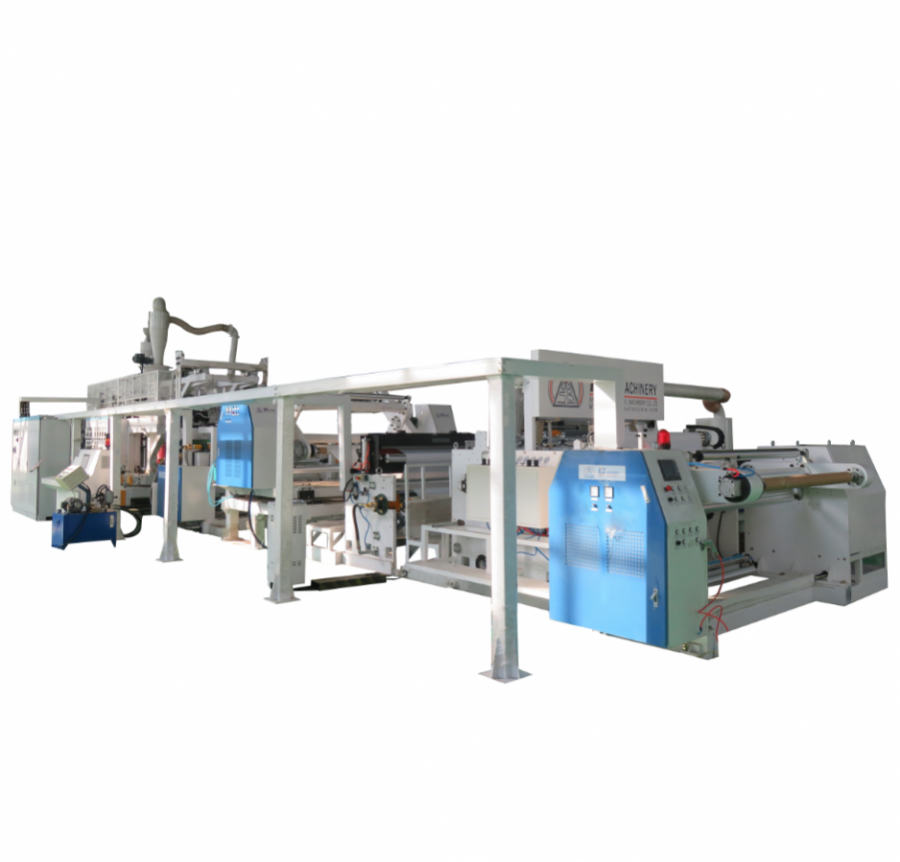

CPE透明薄膜生产线

规格型号 SJLM-CPE-Z
Model SJLM-CPE-Z

2300mm

2700mm

3200mm

螺杆直径(mm)
Screw Diameter(mm)

90/100/100/90

100/110/110/100

110/125/125/110

长径比(L/D)
L/D Ratio of Screw

32:1

32:1

32:1

模头宽度(mm)
Width of Die (mm)

2600

3000

3500

成品宽度(mm)
Width of Film (mm)

2300

2700

3200

成品厚度(mm)
Thickness of Film (mm)

0.02-0.10

0.02-0.10

0.02-0.10

膜层结构
Structure of Film

A/B/C/D

A/B/C/D

A/B/C/D

挤出量(kg/h)
Max. Extrusion Capacity (kg/h)

720

850

1150

机械设计线速(m/min)
Design Speed (m/min)

180

180

180

总功率(kw)
Total Installed Power (kw)

650

800

1000

外形尺寸(长×宽×高)(m)
Overall Dimensions (m)

20×10×6.5

21×11×6.5

22×12×6.5

重量(T)
Weight (T)

50

60

70
